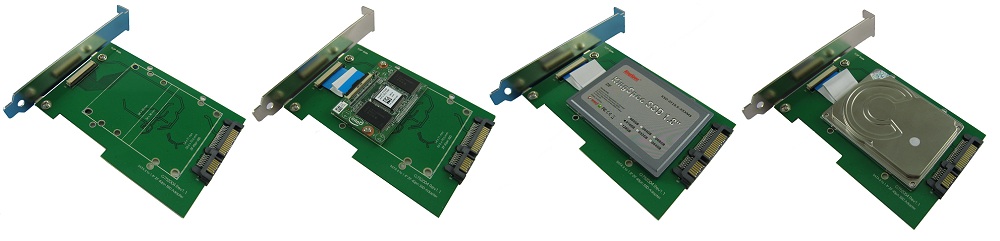

CB946FB is SATA to 1.8” ZIF SSD&HDD adapter, providing a set of standard 7+15pin SATA connector on the host connection and a set of ZIF 40pin 0.5mm pitch connector on the storage device connection. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.
CB946FB adapter allows the installation of ZIF storage as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the storage devices.
※ Fully compliant with SATA revision 2.6
※ SFF-8142 Specification for 54mm x 71mm Form PCI Express Card Electromechanical Specification Revision 1.1
※ Serial ATA Reversion 2.6 -------------------------------------------------------> February 2007
※ ATA/ATAPI-7 --------------------------------------------------------------------> April 2004
Convert a PATA ZIF 40pin SSD into a SATA II SSD with 7+15pin standard connector for greater reliability and reduced heat generation
Achieve cost-effective SSD to a small form factor or embedded computing solution.
1. desk-top PC
2. Internet Appliances
3. Kiosks
4. Industrial Computers
5. Routers
6. Firewalls

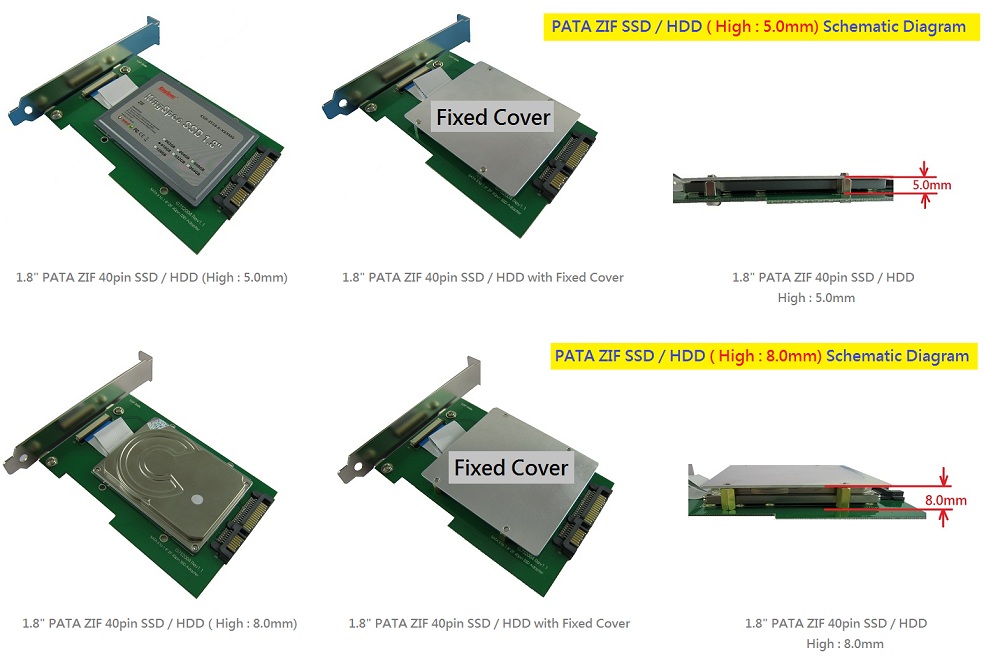

Support Storage Device:
※ Intel Z-P230 with ZIF 40pin SSD and compatible Storage(PATA)
※ Samsung 1.8”SSD & HDD and compatible Storage(PATA)
Test repoort Download :

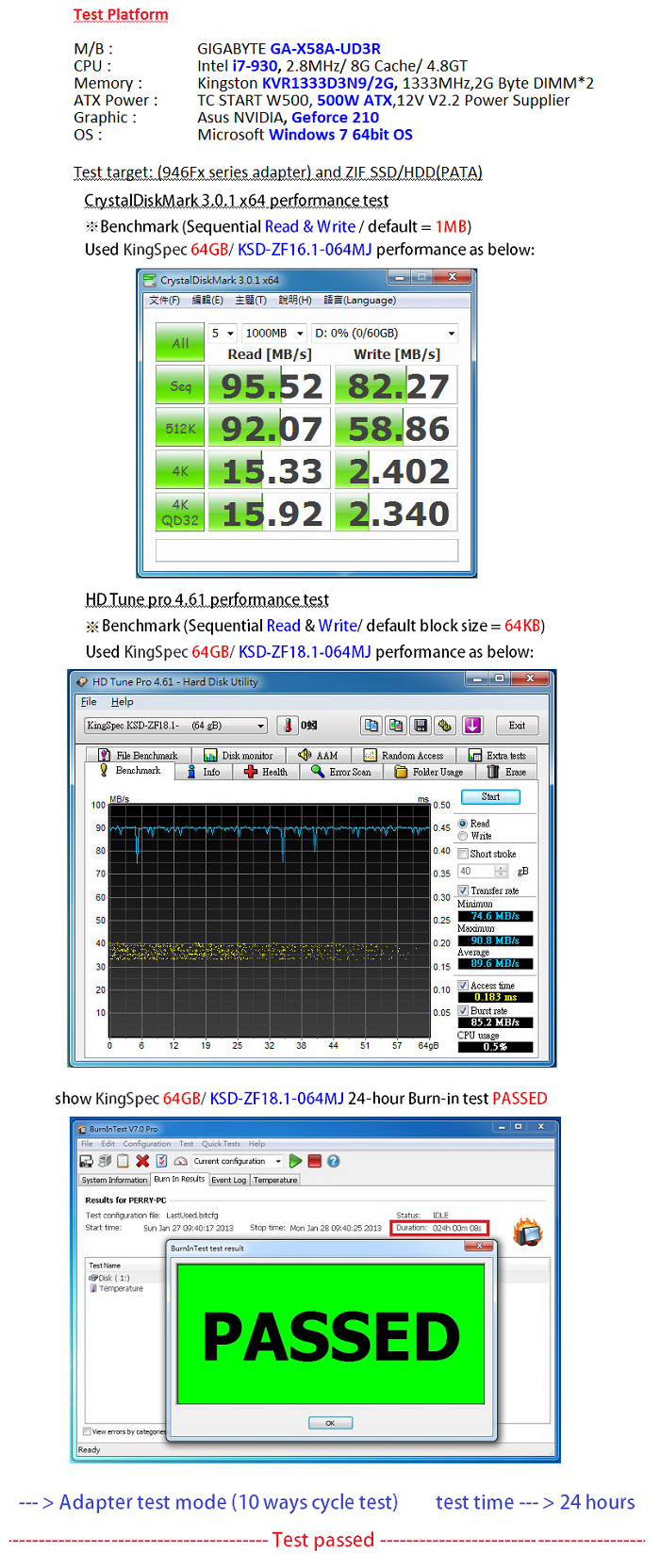

CB946FB performance and burn in test report
Datasheet Download :
ZIF 40pin FFC Cable assembly guide Download :
ZIF 40pin FFC Cable assembly guide for ZIF HDD
ZIF 40pin FFC Cable assembly guide for ZIF HDD (中文版)
ZIF 40pin FFC Cable assembly guide for ZIF SSD module
ZIF 40pin FFC Cable assembly guide for ZIF SSD module (中文版)
ZIF 40pin FFC Cable assembly guide for ZIF 1.8" SSD
ZIF 40pin FFC Cable assembly guide for ZIF 1.8" SSD (中文版)
